Connecting Your NeXus-32 via Bluetooth or USB

Connection Options

The NeXus-32 supports both Bluetooth and USB connectivity. Choose your preferred method to connect the device to your computer.

Bluetooth Connection Steps

1. Disable your computer's internal Bluetooth if using an external Bluetooth dongle.
2. Power on your NeXus-32 by pressing and holding the power button briefly.
3. Go to Start > Settings > Devices > Bluetooth. Enable Bluetooth and select the NeXus device to pair.

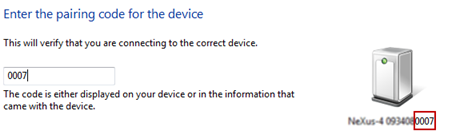

4. Input the passcode when prompted, which is the last four digits of the device's serial number.
5. Complete any additional steps as instructed to finalize the connection.

USB Connection Procedure

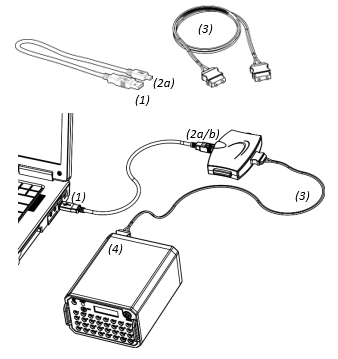

1. Connect the provided USB cable to your computer and the NeXus-32 using the micro USB and Fusbi adapter. As shown in diagram, connect the USB cable (1) to a USB input on the computer. Connect the micro USB cable (2a) to the Fusbi micro USB (2b). Connect the optical fiber (3) to the input of the Fusbi and the other end to the fiber connector on the back of the NeXus-32 (4).
2. Turn on the NeXus-32 by briefly pressing its power button.
3. Wait for the driver installation notification to confirm the connection is successful.

Follow these steps to ensure a successful connection to your NeXus-32 device, whether through Bluetooth or USB.
